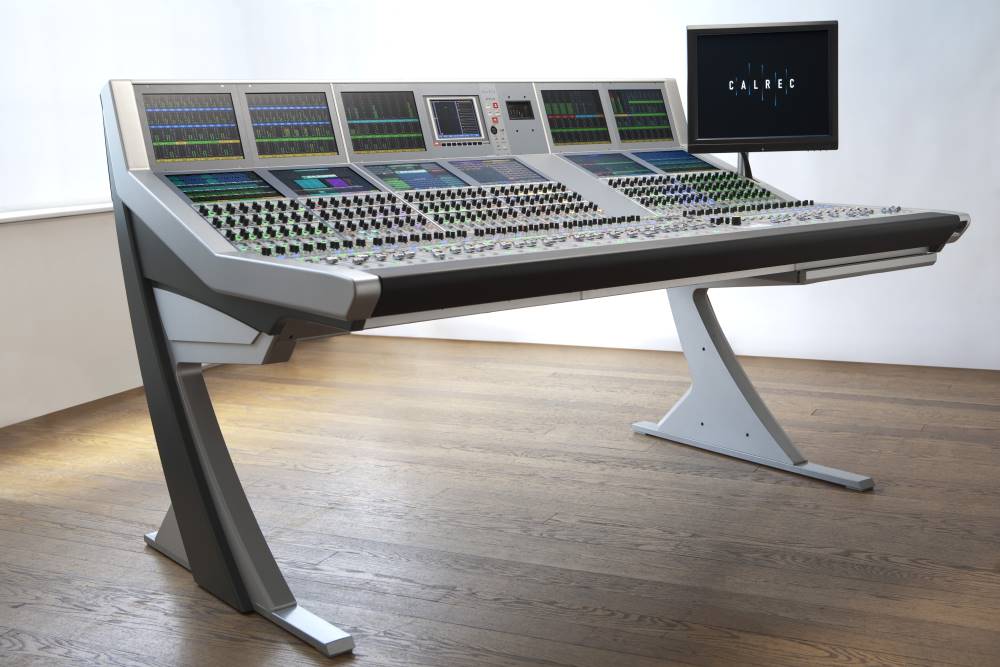

Apollo
Több mint 1000 bemeneti full DSP processzálás az erőforrások megosztása nélkül, a kimenetek számának csökkenése nélkül. Az Apollo kiemelkedő erőt képvisel: 1020 bemeneti jel processzálás, 128 program BUS, 96 IFB/Track kimenet és 48 AUX.
Szimpla vagy egymás felett elhelyezett dupla fader opcióval az Apollo több fadert kínál kisebb helyen, mint bármelyik másik konzol, illetve az integrált 8192x8192 audio router teljes hálózati flexibilitást biztosít. Az Apollo is a Calrec saját rendszerét, a Hydra2 rendszert használja a ki/bemenetek fogadására, küldésére.
Ideális televíziós csatornáknak stúdióba vagy közvetítőkocsiba, amennyiben csak a legmagasabb elvárásoknak megfelelő berendezés jöhet szóba.
Technikai specifikáció
- 100mm faders with mechanical PFL overpress
- Up to 320 faders

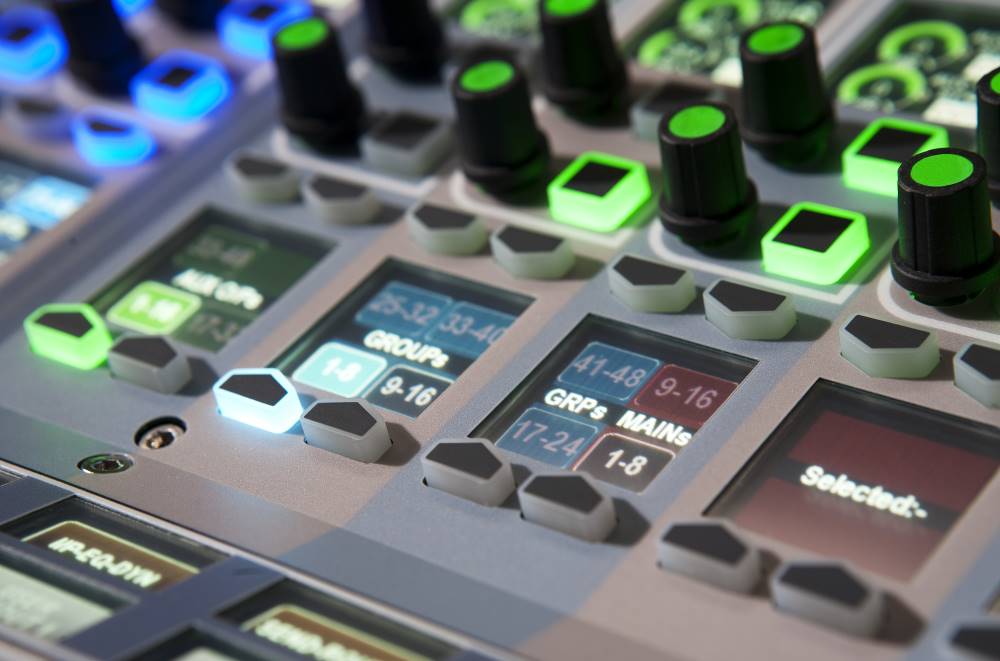

- Colour-changing rotary knobs to indicate function
- Touch screens controlling I/O, monitoring and routing
- 1020 channel processing paths
- Up to 16 x stereo or 5.1 surround main outputs*
- Up to 48 x mono, stereo or 5.1 surround audio groups*
- 96 x multi-track Buses for IFB or recording
- 4 x track sends per path
- 48 x auxiliary Buses
- Up to 4 x Direct Outputs/Mix Minus sends per path
- Direct outputs can be pre-EQ, pre-fader or post-fader
- 3 x independent user sections with independent monitoring
- All channels and groups have 6-band parametric EQ
- All channels, groups and mains have full dynamics
- Side Chain EQ/Filters
- 256 x Inserts
- Up to 2.73s per Output from a pool of 256 channels
- Up to 2.73s per Input from a pool of 256 channels
- All paths have 2.73s delay in addition to in and out delay
- 12 fader layers, each with its own A and B paths
- 8 x AutoMixers, each controlling an unlimited number of paths
- Advanced AutoFader (AFV) functionality on all faders
- Integral 8192² router
- 16/32 Router ports
- All I/O provided over Hydra2 network via a comprehensive range of Hydra2 I/O boxes
- Cat5e or fibre connectivity
* from a Mains/Group pool of 128 resources
